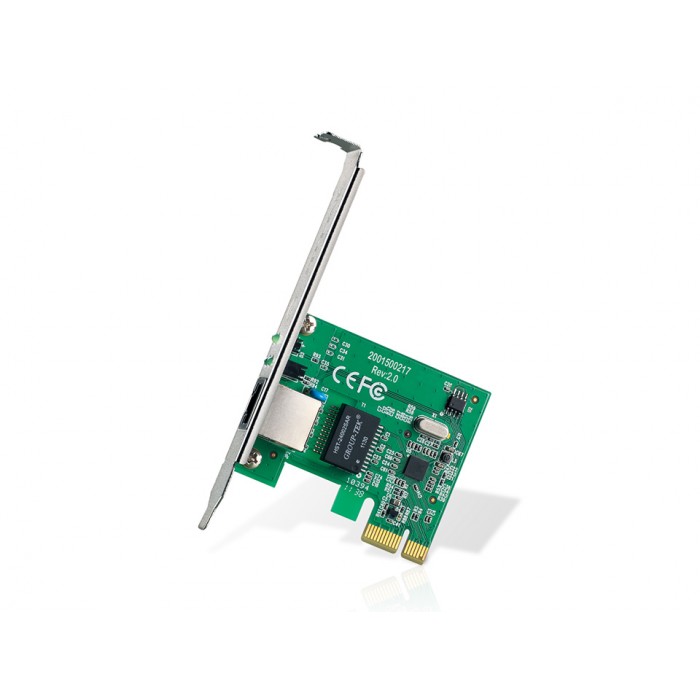

P. REDE 10/100/1000Mbps PCI Express TG-3468
- Marca: TP- Link
- Referência: 060080040
- Disponibilidade: Em stock
-
12,90€
IVA Incluído
- Adaptador 10/100/1000Mbps PCIe
- 32-bit de interface PCIe, economizando espaço em chassis limitados
- Wake-on-LAN, conveniente para gerenciar mais LAN
CARACTERÍSTICAS DO HARDWARE
Standards and Protocols: IEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.1q, 802.1p, CSMA/CD, TCP/IP
Interface: 32-bit PCI Express
1 10/100/1000Mbps RJ45 port
Network Media: 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
1000Base-T: UTP category 5, 5e cable (maximum 100m)
Data Rates:
- 10/100/1000Mbps for Half-Duplex mode
- 20/200/2000Mbps for Full-Duplex mode
LED Indicator: 1000Mbps Link/Act, 100Mbps Link/Act, 10Mbps Link/Act
Flow Control: IEEE 802.3x Flow Control (Full-Duplex)
OTHERS
Certification: CE, FCC, RoHS
Package Contents: Gigabit PCI Express Network Adapter TG-3468
Resource CD
Quick Installation Guide
System Requirements: Windows 7(32/64bits),Windows Vista(32/64 bits),Window XP(32/64bits)
Environment:
- Operating Temperature: 0℃~40℃ (32℉~104℉)
- Storage Temperature: -40℃~70℃ (-40℉~158℉)
- Operating Humidity: 10%~90% non-condensing
- Storage Humidity: 5%~90% non-condensing
